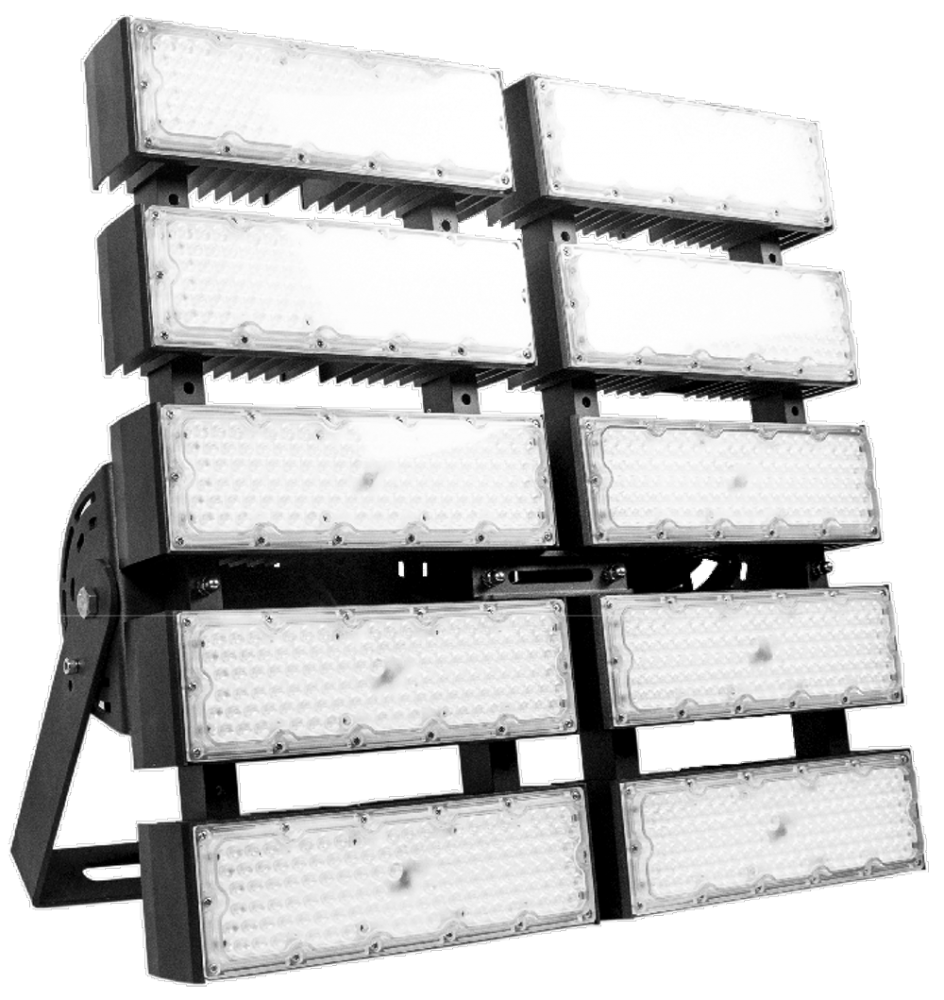

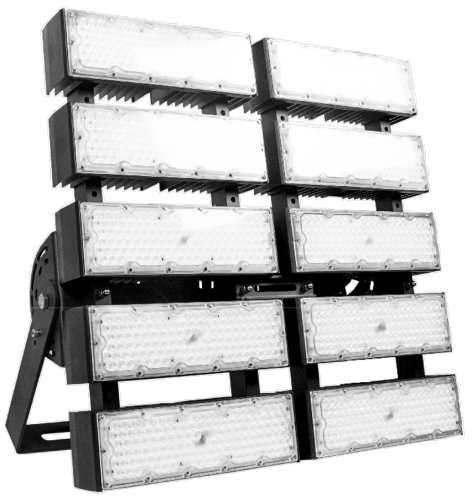

E SERIES-400W Static Module Stadium Area Lighting

The SO1E-400 is a modular 400W project floodlight designed for stadiums, sports grounds, courts, golf ranges and extensive area-lighting applications. It delivers 50,400lm at 5700K with 126lm/W efficacy and CRI >80. The standard product provides a 120° beam, with 25°, 30°, 45°, 60° and 90° distributions available for projects requiring different light concentration and coverage. Multiple LED modules are mounted on a fixed heavy-duty bracket to provide secure positioning and effective heat management. The serviceable driver supports future maintenance. Operating from 90–305VAC, the fitting is rated IP65, measures 564 x 199 x 181mm, weighs 12kg and carries a five-year warranty.
