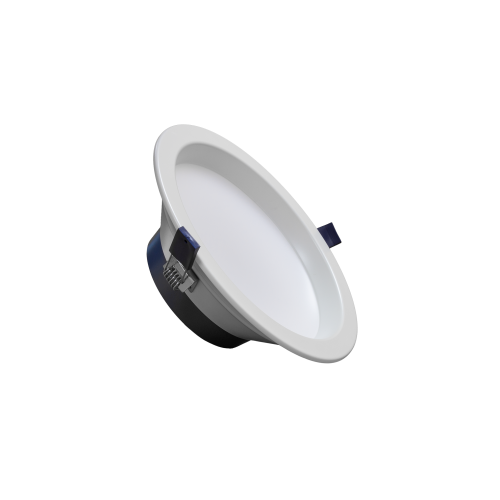

230mm 23W/30W Selectable CCT LED Downlight, 195mm Cut-Out

The ZEN8-REV-A is the largest selectable power and CCT LED downlight in the ZEN range, designed for commercial interiors requiring higher light output. DIP switches allow selection between 23W and 30W and between 3000K, 4000K or 5700K. Depending on the chosen setting, it delivers 2100-2400lm at 23W or 2800-3150lm at 30W, with efficacy up to 117lm/W. The fitting provides a 100° beam angle, CRI >80, flicker-free output and leading-edge or trailing-edge dimming as standard. It has a 230mm overall diameter, 75mm depth and requires a 195mm ceiling cut-out. The powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection support use across offices, corridors, reception areas, education buildings and hospitality spaces. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
