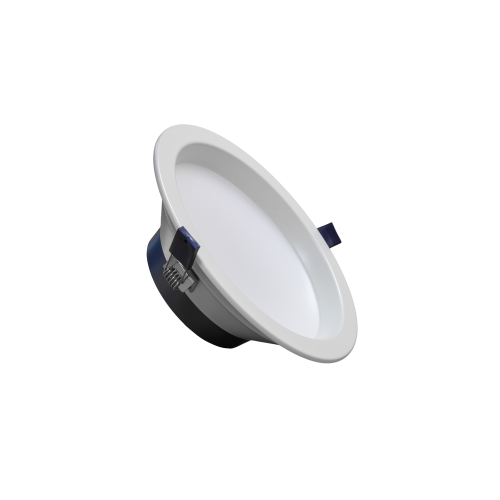

230mm 23W/30W Selectable CCT DALI LED Downlight, 195mm Cut-Out

The ZEN8-REV-A-DA is the highest-output DALI LED downlight in the ZEN range, with selectable power and colour temperature for commercial interiors. It can be configured to 23W or 30W and to 3000K, 4000K or 5700K, delivering 2100-2400lm at 23W or 2800-3150lm at 30W depending on the selected CCT. DALI dimming allows the fitting to be incorporated into a compatible DALI lighting system. The fitting also provides a 100° beam angle, CRI >80, flicker-free output and efficacy up to 117lm/W. It measures 230mm in diameter by 75mm deep and requires a 195mm ceiling cut-out. Its powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection suit larger commercial ceiling applications. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
