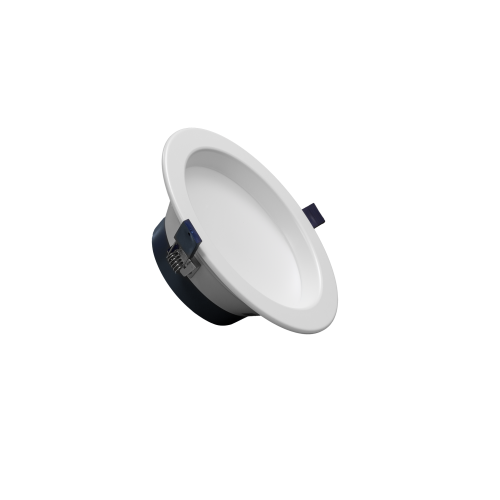

200mm 15W/20W Selectable CCT LED Downlight, 160mm Cut-Out

The ZEN7-REV-A is a selectable power and CCT LED downlight for larger commercial ceiling applications. DIP switches allow selection between 15W and 20W and between 3000K, 4000K or 5700K. Depending on the chosen setting, it delivers 1300-1450lm at 15W or 1800-2050lm at 20W, with efficacy up to 114lm/W. The fitting provides a 100° beam angle, CRI >80, flicker-free output and leading-edge or trailing-edge dimming as standard. It has a 200mm overall diameter, 68mm depth and requires a 160mm ceiling cut-out. The powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection support installation in offices, corridors, reception areas, education buildings and hospitality spaces. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
