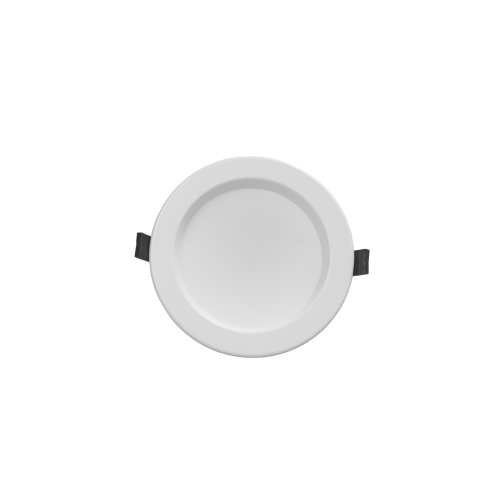

165mm 13W/18W Selectable CCT LED Downlight, 135mm Cut-Out

The ZEN5-REV-A is a selectable power and CCT LED downlight designed for commercial interior lighting. DIP switches allow selection between 13W and 18W and between 3000K, 4000K or 5700K. Depending on the chosen setting, it delivers 1300-1500lm at 13W or 1600-1900lm at 18W, with efficacy up to 115lm/W. The fitting provides a 100° beam angle, CRI >80, flicker-free output and leading-edge or trailing-edge dimming as standard. It has a 165mm overall diameter, 63mm depth and requires a 135mm ceiling cut-out. A powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection support use in offices, corridors, reception areas, education buildings and hospitality spaces. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
