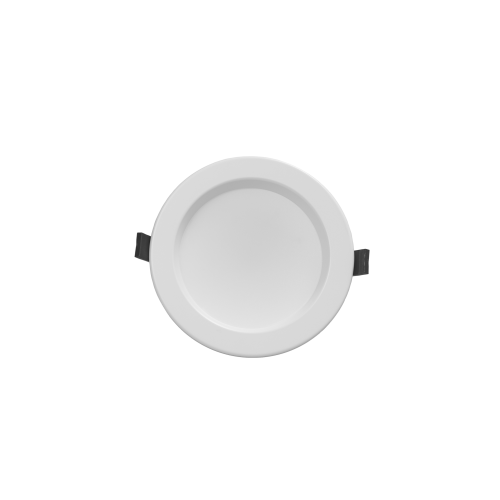

165mm 13W/18W Selectable CCT DALI LED Downlight, 135mm Cut-Out

The ZEN5-REV-A-DA is a DALI LED downlight with selectable power and colour temperature for commercial interiors. It can be configured to 13W or 18W and to 3000K, 4000K or 5700K, delivering 1300-1500lm at 13W or 1600-1900lm at 18W depending on the selected CCT. DALI dimming allows the fitting to be incorporated into a compatible DALI lighting system. The fitting also provides a 100° beam angle, CRI >80, flicker-free output and efficacy up to 115lm/W. It measures 165mm in diameter by 63mm deep and requires a 135mm ceiling cut-out. Its powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection suit offices, corridors, reception areas and hospitality spaces. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
