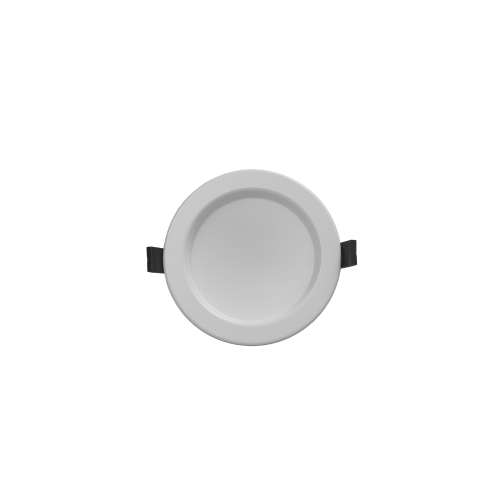

145mm 10W/14W Selectable CCT LED Downlight, 120mm Cut-Out

The ZEN4-REV-A is a compact selectable power and CCT LED downlight for offices, corridors, reception areas and other commercial interiors. DIP switches allow selection between 10W and 14W and between 3000K, 4000K or 5700K. Depending on the chosen setting, it delivers 900-1100lm at 10W or 1250-1500lm at 14W, with efficacy up to 110lm/W. The fitting provides a 100° beam angle, CRI >80, flicker-free output and leading-edge or trailing-edge dimming as standard. It has a 145mm overall diameter, 61mm depth and requires a 120mm ceiling cut-out. The powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection support practical commercial installation. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
