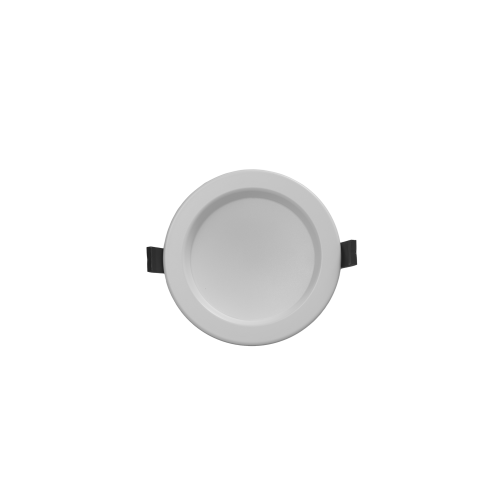

145mm 10W/14W Selectable CCT DALI LED Downlight, 120mm Cut-Out

The ZEN4-REV-A-DA is the DALI version of the compact ZEN4 selectable power and CCT LED downlight. It can be set to 10W or 14W and to 3000K, 4000K or 5700K, delivering 900-1100lm at 10W or 1250-1500lm at 14W depending on the selected colour temperature. DALI dimming allows the fitting to be incorporated into a compatible DALI lighting system. It also provides a 100° beam angle, CRI >80, flicker-free output and efficacy up to 110lm/W. The downlight measures 145mm in diameter by 61mm deep and requires a 120mm ceiling cut-out. Its powder-coated aluminium housing, anti-glare prismatic diffuser, IC-4 rating and IP63 front-face protection suit commercial interiors. A separate emergency conversion is available where backup lighting is required. It has an L80 rated life of 50,000 hours and a five-year warranty.
