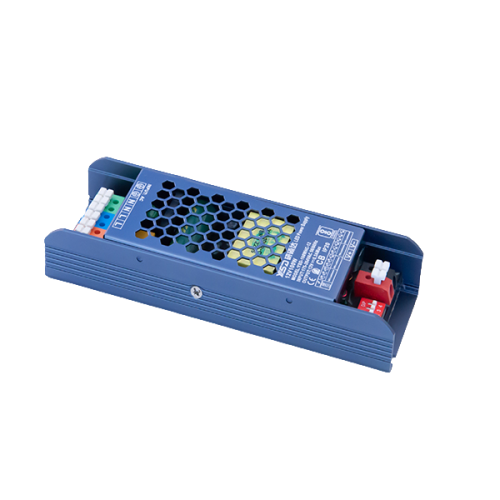

36W 36VDC IP20 Constant Voltage LED Driver with DIP Switch Preset Dimming

The YSD-36WHC-36 is a 36W 36VDC constant voltage LED driver designed for low voltage LED lighting applications. Operating from a 100-264VAC input, it provides up to 1A output current in a compact IP20 housing. DIP switch preset dimming allows the light output to be set directly on the driver at 25%, 55%, 75% or 100%, giving installers a simple way to adjust output without additional control gear. The driver also features push-in terminals, smooth start, a semi-potted PCB, fanless convection cooling and a built-in LED status indicator. Integrated protection against overtemperature, overvoltage, overload and short circuit helps support reliable operation in indoor LED installations.
