Home / Products / Drivers / Dimmable / 100W 36VDC IP20 Constant Voltage LED Driver with DIP Switch Preset Dimming

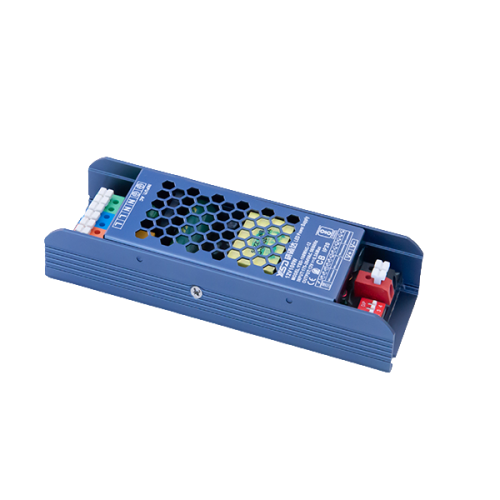

100W 36VDC IP20 Constant Voltage LED Driver with DIP Switch Preset Dimming

SKU: YSD-100WHC-36 Please ring us to discuss a great price for this product.

Output Voltage	36 V V
Wattage	100 W W
Current	2.77A
Dimming Type	Preset

100W 36VDC constant voltage LED driver with 175-264VAC input, IP20 rating, DIP switch preset dimming, push-in terminals and built-in protections.

More information

Request a quote Call for best price View datasheet

Same day dispatch
UK stock, order before 16:00 Mon-Fri

Free delivery
All orders over £250 (Mainland UK)

Trusted solutions
Supporting projects for over 30 years

Expert support
Free lighting schemes and tech guidance

Products that go with SKU: YSD-100WHC-36

Specification

Description

The YSD-100WHC-36 is a 100W 36VDC constant voltage LED driver designed for low voltage LED lighting applications. Operating from a 175-264VAC input, it provides up to 2.77A output current in a compact IP20 housing. DIP switch preset dimming allows the light output to be set directly on the driver at 25%, 55%, 75% or 100%, giving installers a simple way to adjust output without additional control gear. The driver also features push-in terminals, smooth start, a semi-potted PCB, fanless convection cooling and a built-in LED status indicator. Integrated protection against overtemperature, overvoltage, overload and short circuit helps support reliable operation in indoor LED installations.
