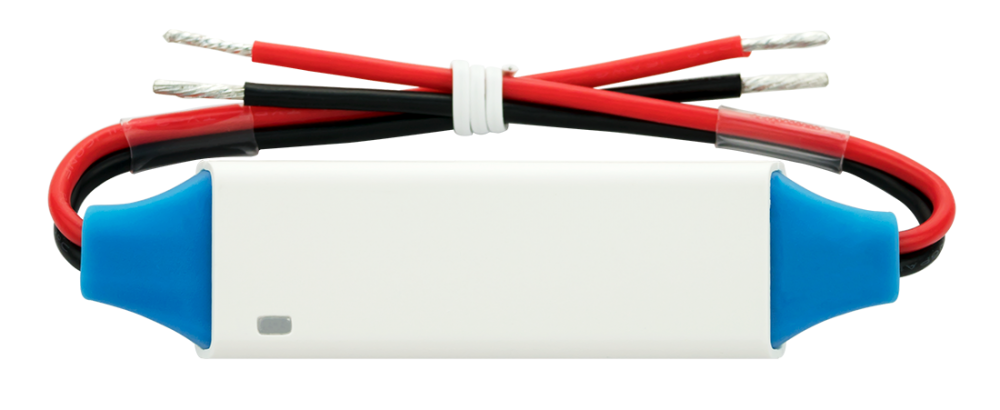

BLE-15A Single Colour BLE Mesh LED Controller

BLE-15A-REV-A is a compact Bluetooth Low Energy Mesh LED dimming controller for 6–24V DC constant-voltage lighting. It delivers a single 12A output and provides smooth, flicker-free 0–100% dimming with gamma correction and 4,000 PWM levels. Control the unit through the UMI SMART app on iOS or Android, with Bluetooth Mesh support for up to 255 devices on one network and a 20m open-area transmission range. The controller includes eight dynamic modes, adjustable speed settings, failsafe memory, and protection against reverse polarity, overload, short circuit, and overheating. Its ultra-slim IP63-rated housing measures 86 × 21 × 8.5mm. Several controllers can work in synchronisation and as a Mesh configuration does not require repeaters to link directly with the master controller installation is simpler and quicker for both small and larger systems. The Light MESH app interface allows users to control dimming, colour changing modes and set scenes from a mobile device or tablet through iOS or Android. A remote control is also available. The requirement for less components also means your Bluetooth Lower Energy (BLE) Mesh network offers savings to both setup and installation costs.
